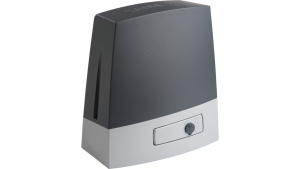

The BKX is the most advanced and powerful sliding motor, with a brushless 24V DC motor and native encoder, ideal for residential and industrial gate applications up to 800 kg.
Featuring a control board with display, onboard radio decoding, movement and obstruction detecting devices for gates weighing up to 800 kg and 20 m in length
- Designed for rapid movement, up to 24 m/min
- “Adaptive Speed and Torque Technology” to ensure a lasting, constant and smooth speed during movement.
- Control board with terminal blocks, graphic display and storage for up to 1000 users.
- Control board equipped with CXN BUS connectors.
- Four safety inputs can be configured to directly manage the (8k2Ω) resistive sensitive safety edges.
- User-friendly release lever for manually opening the gate.
- Includes CXN BUS technology, which allows perfect integration with the CAME line of BUS accessories for quicker and simpler installations
- Integrated clock card for management of up to 8 opening and closing operations programs.
- Protection rating against weathering agents (IP54).
- Ready for installation of magnetic limit switches (001RSDN002).
- Developed with CONNECT technology for remote digital control via a gateway or locally via CAME KEY.
- Tested with MCBF of up to 250.000 cycles (Mean Cycles Between Failures)
CAME Code: 801MS-0690 (BKX08AGF)
