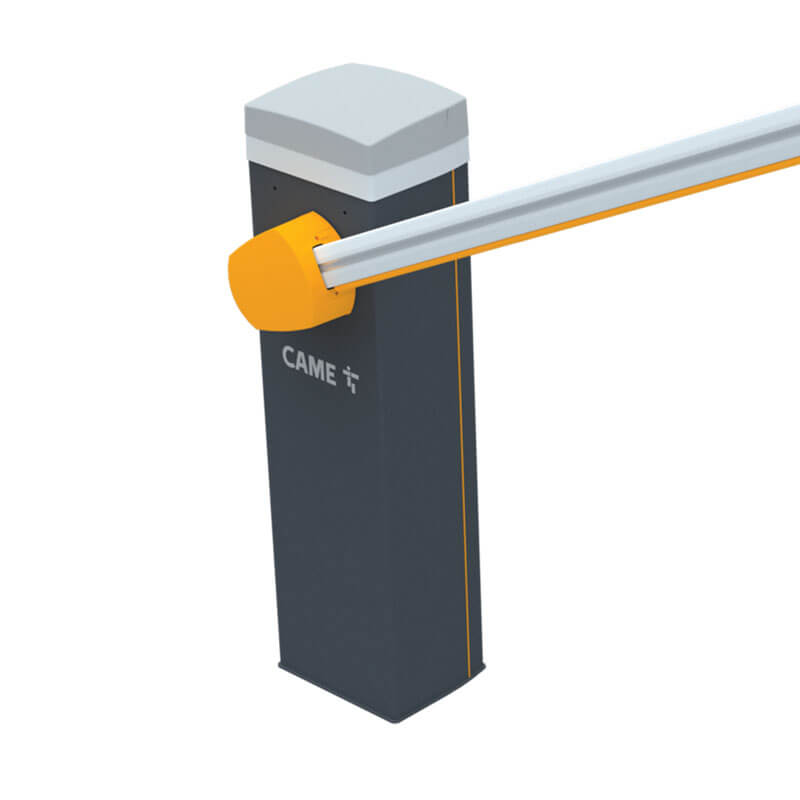

GARD PX

Designed for Continuous use in high-traffic driveways. This automatic barrier is the perfect solution for parking lots or access points with intense traffic flow. Equipped with a brushless motor and an oil-bath gearbox, it ensures optimal performance and durability even in continuous operation. With a remarkable MCBF of 10 million cycles, this barrier offers unmatched reliability, making it ideal for locations that require non-stop use.

Main characteristics

• Brushless motor for high performance and silent operation.
• Continuous use tested for 10 million cycles (MCBF – mean cycle between failures).

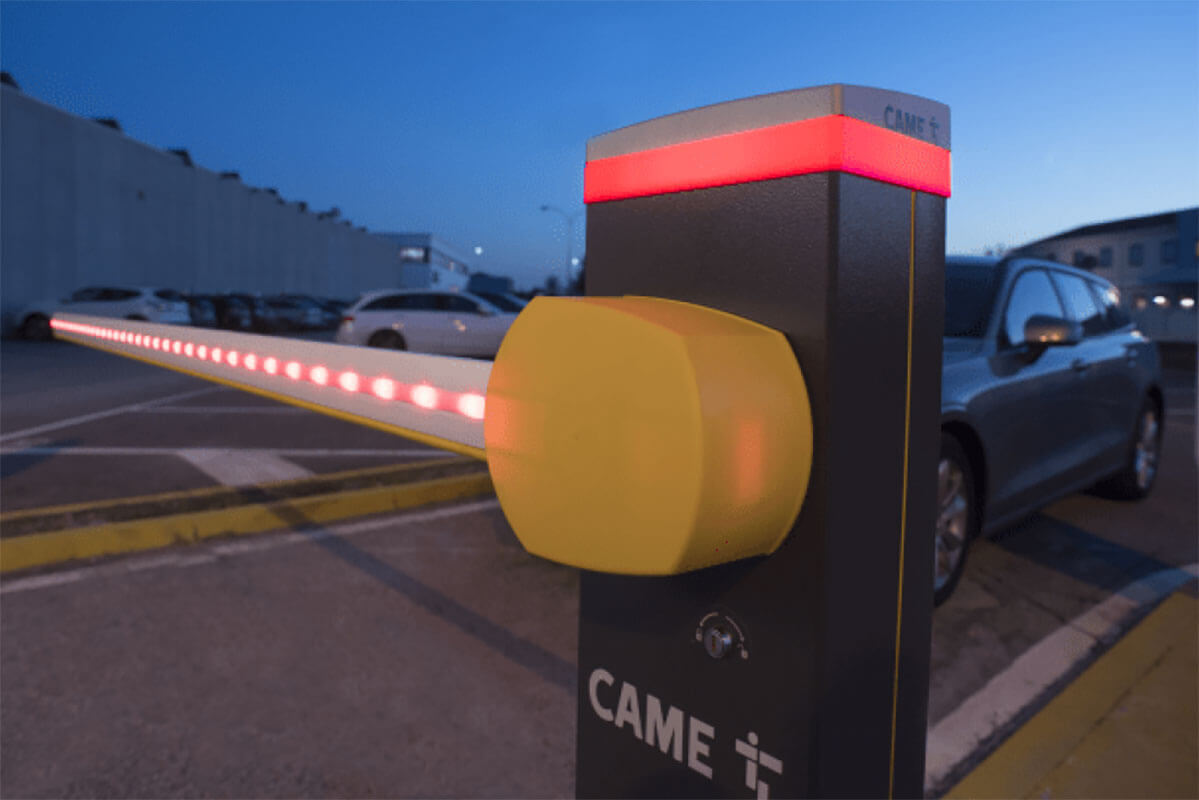

• Available with high visibility red/green LEDs on the crown and both sides of the boom.
• Modern design with a galvanised steel cabinet with a rough finish.

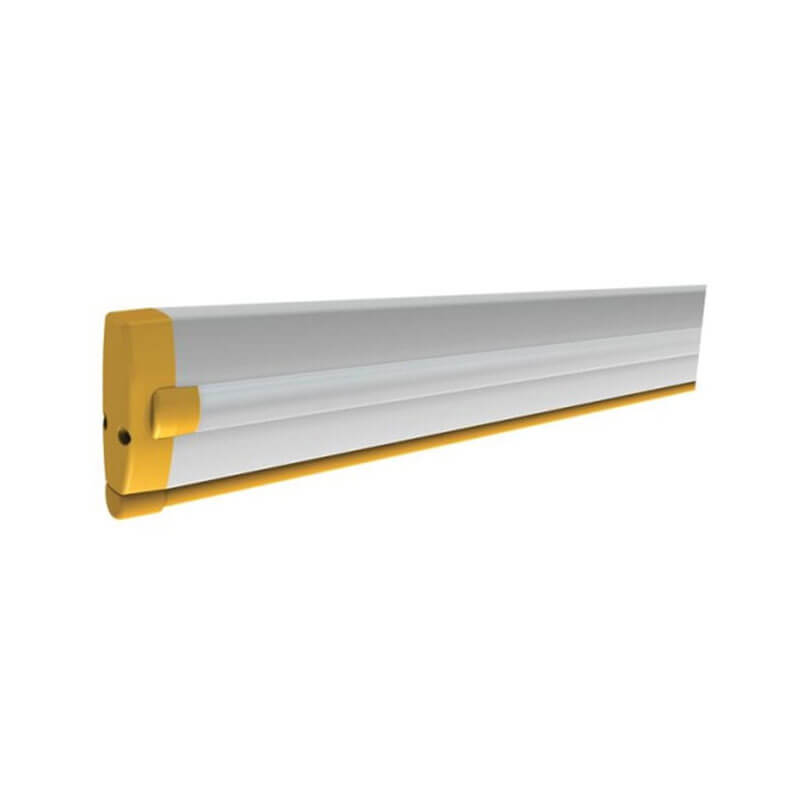

• Boom casing for protection against shearing in opening and closing.
• Available accessory for boom safety release in case of impact for high-traffic applications.

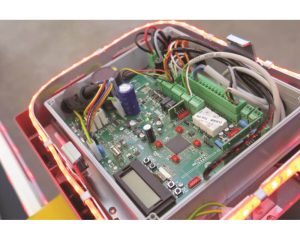

• Control board with display.
• Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY.

Automatic speed control

The GARD PX series features advanced firmware for optimised speed management. It intelligently adjusts motor speed based on the boom’s position to reduce the risk of malfunctions. During setup, the installer inputs key parameters such as boom length and performs an initial calibration. The firmware then continuously monitors and adjusts speed and deceleration during each cycle, utilising encoder feedback to ensure precision.

Main advantages:

• Smooth, adaptive deceleration for seamless movement
• Improved obstacle detection for enhanced safety
• Extended product lifespan through optimised performance

Smart design for easy installation

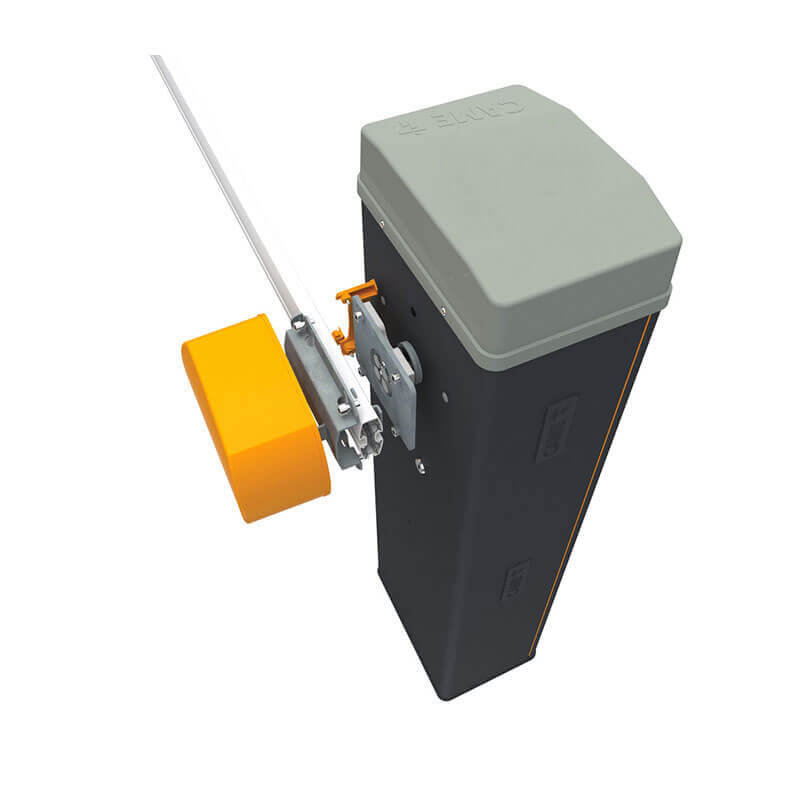

The improved design allows for easy reversal of the barrier’s opening direction without disassembling any components. An intermediate plate supports smooth installation of the boom on either the right or left side, significantly reducing setup effort. The startup process has been streamlined into three quick steps: select the opening direction on the display, input the boom length, and perform the initial calibration. That’s it!

The main advantages are:

• Only one model compatible with both left/right barrier configurations
• Reduced installation time
• Reduced risk of errors during configuration

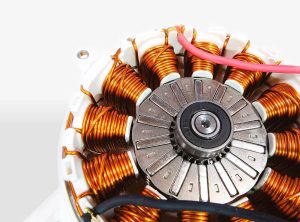

Brushless Technology

The GARD PX is equipped with a brushless motor and an oil-bath gearbox, providing outstanding performance and long-lasting durability, even under continuous operation. Boasting an impressive MCBF of 10 million cycles, this barrier ensures exceptional reliability, making it the perfect solution for high-traffic areas that demand a non-stop operation.

Integration with third-party systems

The GARD PX supports the Modbus protocol, a global standard in industrial communication and one of the most widely used connection protocols for industrial electronic devices. Its control board includes a built-in RS-485 interface with native Modbus support, allowing for easy integration. Additionally, with an optional bridge, the RS-485 signal can be converted to TCP, enabling seamless compatibility with third-party systems such as access control or building management systems. This flexibility ensures smooth interoperability with a range of industrial and commercial applications.
